My fridge upgrade (Read 2552 times)

Jan 8^th, 2017 at 10:51pm

jclures Offline
COCIA® Diamond Member
I Love COCIA
Joined: May 14^th, 2009 at 9:24pm
Last online: Feb 22^nd, 2020 at 10:44am

Gender:
Zodiac sign:
Posts: 1283

I have had a bit of a side track on my camper. I thought I might try and get my 60ltr Trailblazer working again. The original fridge unit died years ago and fitting in a new factory unit was I thought a bit high. I nearly could have brought a new fridge.
I at the time fitted a new after market compressor but if was always to big for the job being a 5.5cc unit It did work but was problematic on really hot days.

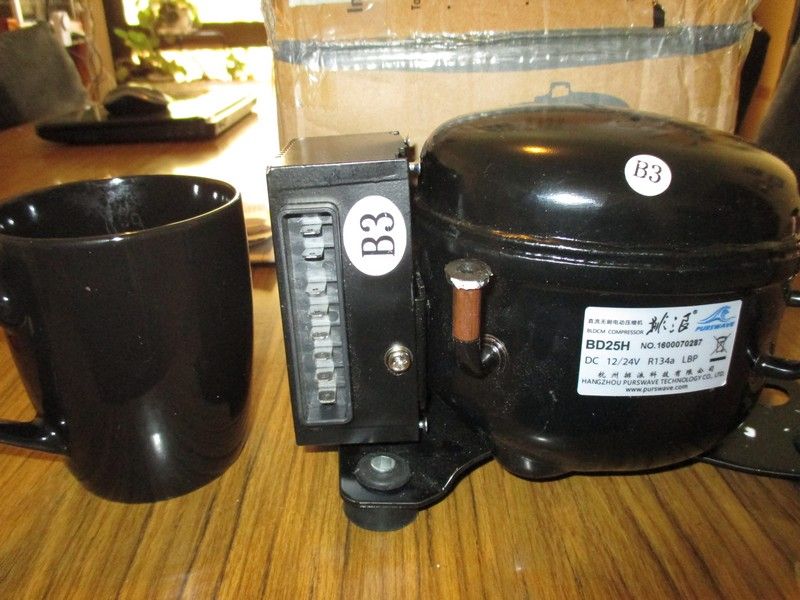

I thought it was time to have another go, so I went looking on the internet for a new 2.5cc to a 3.5cc 12v compressor, I found one on AliExpress, it cost me $218au landed at my door.

https://www.aliexpress.com/item/BD25H-12V-24V-DC-Compressor-mini-compressor-for-...

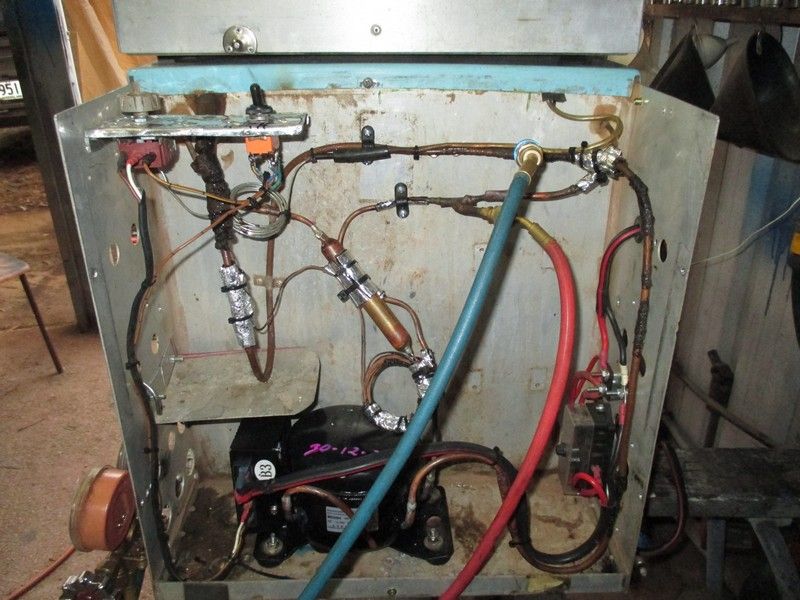

I have now fitted the unit, I had a bit of research to do regarding the variable motor speeds, to which with a few resistors and a switch it now has a two speed system. Something the older units never had.

I had to get some help with the silver soldering as this needs two hands, I can get into enough problems getting Bonnie to help with normal soldering.

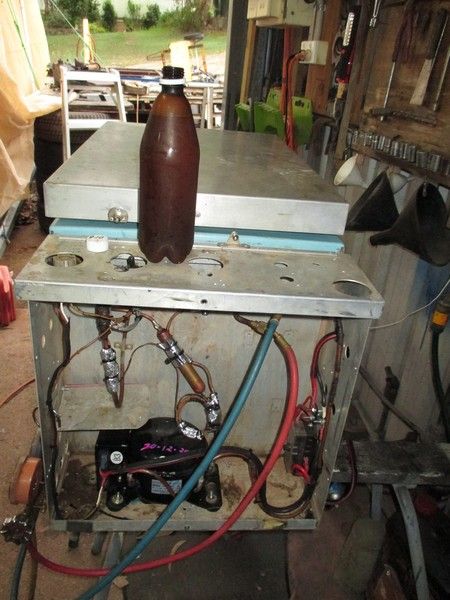

All now fitted and gassing it up.

I now have a fridge giving me nice cold beer again. Smiley

I am now planing on fitting in a digital thermostat to replace the old stile unit to give it more control over the temps. I will leave the older thermostat where it is though in case the digital unit ever fails.

I also have to work out what resistors I need to give it more battery control, either high or low battery level usage.

IP Logged

Advertisement

Reply #1 - Jan 9^th, 2017 at 4:34pm

Derek Offline
COCIA® Owner
The "Camp Oven Cook"
Joined: Nov 10^th, 2003 at 3:00pm
Last online: Yesterday at 11:06pm

Gender:
Mood:
Zodiac sign:
Posts: 13650

Full credit to you John. Had it of been mine it would have been in the dump ages ago. I have always envied people who can get in and fix things.

Retired
Writer
Amateur Ornithologist (Twitcher)
Camp Oven Cook
Epicurean

IP Logged

Reply #2 - Jan 19^th, 2017 at 1:19pm

jclures Offline
COCIA® Diamond Member
I Love COCIA
Joined: May 14^th, 2009 at 9:24pm
Last online: Feb 22^nd, 2020 at 10:44am

Gender:
Zodiac sign:
Posts: 1283

Derek A new Trailblaza still costs $1573 plus freight to get it here. So a little perseverance on my behalf was worth a go as the fridge cabinet is still like new.

IP Logged

Reply #3 - Jan 21^st, 2017 at 1:20pm

jclures Offline
COCIA® Diamond Member
I Love COCIA
Joined: May 14^th, 2009 at 9:24pm
Last online: Feb 22^nd, 2020 at 10:44am

Gender:
Zodiac sign:
Posts: 1283

I am fitting in a new Digital LED Thermostat Relay, this should replace the old thermostat. Although I am still leaving the old unit in place just in case this unit gives me any trouble.

I had to extend the probe wire length, hoping it should not affect the performance of it.
I have fitted it into the old mounting I already had, and I now have it running.

I have a ambient temperature of 31c, the fridge is .2c, and the Digital LED Thermostat Relay is set at - .5c to 1.5c.
When I have taken the power of the fridge then re powered it the digital LED Thermostat Relay remembered the settings.

IP Logged
